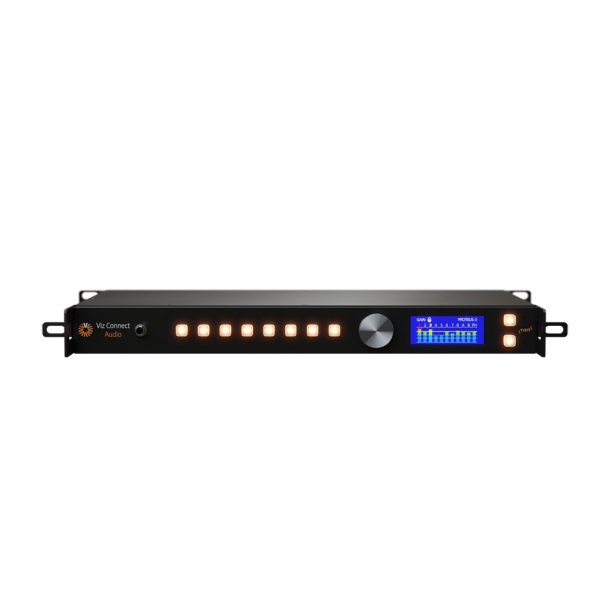

What is Viz Connect Audio?
Viz Connect Audio offers more connectivity, visibility, and control of audio sources on an NDI network than ever before. Connect your mic or line-level analog audio sources, convert to NDI, and share to your TriCaster or across your network – all while being able to access and monitor those sources, ensuring consistent quality.
Viz Connect Audio covers all connectivity bases, offering 8 analogue inputs via a combination of 1/4″XLR Line or Mic inputs as well as NDI connectivity. Not only this, but there are also headphone connections and up to 4 analogue outputs via XLR. Using integrated NDI Bridge, Viz Connect Audio offers limitless connectivity from the server room next door to the TriCaster across the globe.
See it and monitor it all. Whether it’s on your NDI network already, or it’s coming from one of the many physical connections on the device, Viz Connect Audio give visibility of every audio stream on your network. Giving a constant view of quality and availability of sources – these are visible through the WebUI or on the device screen itself.
Stay in the driving seat with audio. Directly select Mic or Line level, phantom power on/off, solo, gain control and NDI grouping control from the device front panel or WebUI. This allows better than ever access, at your fingertips, to connect analogue sources to your NDI network.
Features that will be music to the ears of audio professionals.
- 8 mono analog inputs via XLR-1/4” combo connections
- 48kHz 32-bit floating point NDI conversion
- Gain setting per channel
- Phantom power on/off per channel
- Line/Mic setting per channel
- Global SMPTE/EBU setting
- 4 mono outputs via XLR
- Headphone jack with Solo
- LED indicators for Phantom, mic/line and solo status
- Front panel and WebUI control
