FeelWorld T51 Triple 5" 2 RU 3G-SDI/HDMI Rackmount Monitor

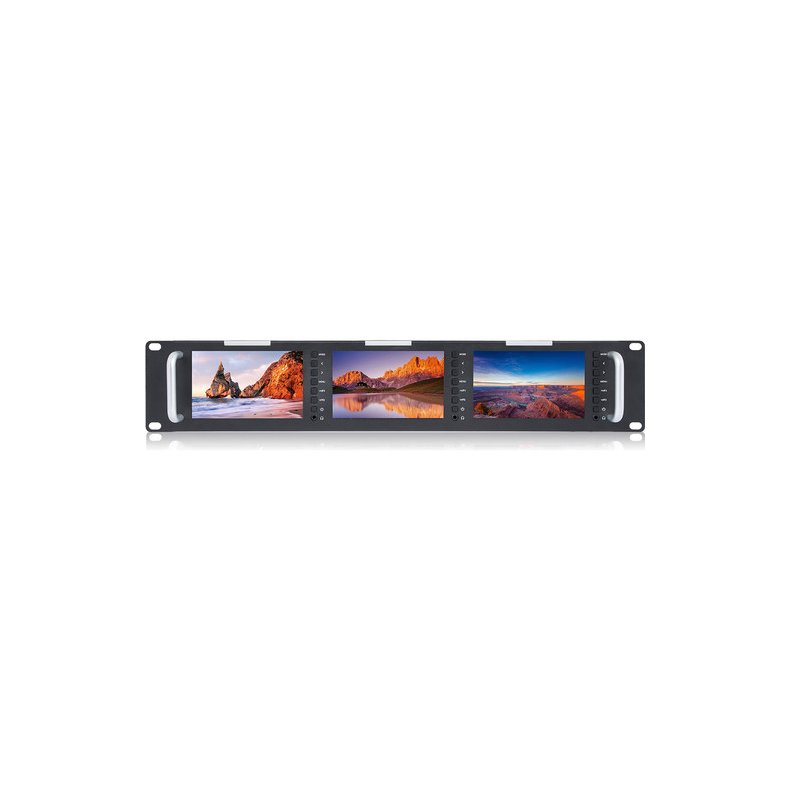

The FeelWorld T51 features three 5" 800 x 480 resolution displays in a slim, all-metal 2 RU rackmount. The rear panel has three sets of 3G-SDI, HDMI, and composite BNC inputs and outputs, three sets of RCA audio inputs, and a single tally port. A three-color tally light is provided on top of each display on the front panel, and a headphone output is available per display for audio monitoring. For power, the T51 has both a DC barrel input and 4-pin XLR input, and a power adapter is included for the barrel input. Monitoring features include peaking, pixel-to-pixel, zoom all, and custom color temperature.

Key Features

• Three 5" displays in a slim, all-metal 2 RU rackmount with cast-iron handgrips
• 800 x 480 resolution
• Three 3G-SDI inputs and outputs
• Three HDMI inputs and outputs
• Three composite BNC inputs and outputs
• Three L/R RCA audio inputs
• Tally port
• Three headphone outputs
• Three-color tally light on top of each display
• 500 cd/m² brightness
• 500:1 contrast
• 140/120° viewing angle
• DC barrel and 4-pin XLR power inputs
• DC power adapter included

Monitoring Features

• Peaking focus assist
• Check field (red, green, blue, mono)
• Pixel-to-pixel
• Center marker
• Safe marker (80, 85, 90, 93, 96, 2.35:1)
• Image flip (horizontal, vertical, horizontal/vertical)
• Image freeze
• Zoom all
• U/D and L/R zoom
• Custom color temperature

FeelWorld T51 Triple Display Specs

Display

I/O

Format Support

Power

Mounting

Environmental

General

Packaging Info

In the Box

• FeelWorld T51 Triple 5" 2 RU 3G-SDI/HDMI Rackmount Monitor
• Power Adapter (3A)
• Tally Kit
• Limited 1-Year Warranty
