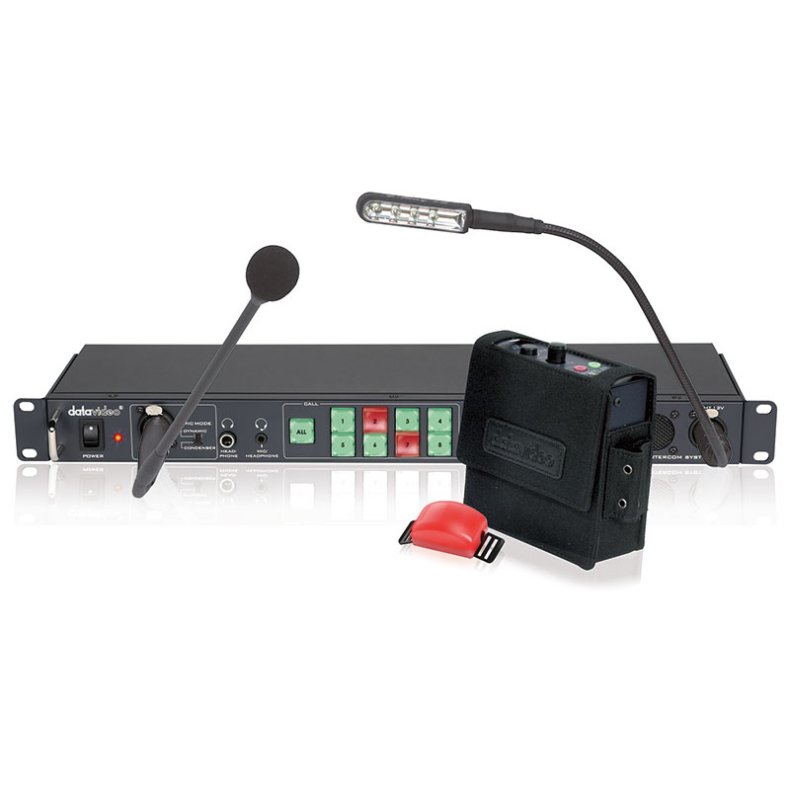

Intercom/ talkback system (max. 8 ch). Includes base station, gooseneck mic. and light for base station, 4x ITC100 SL Belt Pack (see ITC-100 SL for more details)
The ITC-100 provides 8-Way talkback and bi-colour tally indicators.
The director can select to talk to an individual channel or to all channels simultaneously.
The ITC-100 is a standard 19" 1U rack design, so it is easy to integrate into any rack system for using in the field or studio.
ITC-100 includes 4 ITC-100SL Belt Packs, which inluded
TD-3 - Camera Tally Light
CB-3 - 20M Cable
MC-1 - Headset / Microphone
| ITC-100 Intercom System | |
|---|---|
| Power |
DC 12V, 8W |
| Tally |
2 x 15 Pin DSub Sockets for Tally A and B |
| MIC / Headset |
3.5 mm Stereo Jack Socket for Headphone /Microphone combination |
| Headphone |
¼” (6.3mm) Stereo Headphone Socket |
| Light Socket (DC 12 V) |
3 PIN XLR Connector |
| Microphone |
3 PIN XLR / ¼” (6.3mm) Jack Microphone Socket |
| Frequency Response |
550-3.6 kHz, <+/- 3dB |
| THD |
< 3% |
| S/N |
> 50dB |
| Built-in Speaker |
70mm x 30mm 32 Ohm 3 Watts |
| Operating Range |
Up to 200 meters between base station and slave |
| Operating Temp. Range |
0~40 °C |
| Dimension (LxWxH) |
482 x 127 x 46 mm |
| Weight |
1.9 kg |
| What's in the Box |
1 x ITC-100 Base Unit |
| Title | Type | Size | Download |
|---|---|---|---|
| ITC-100-Spec-Sheet.pdf | 281.92KB | Download |
