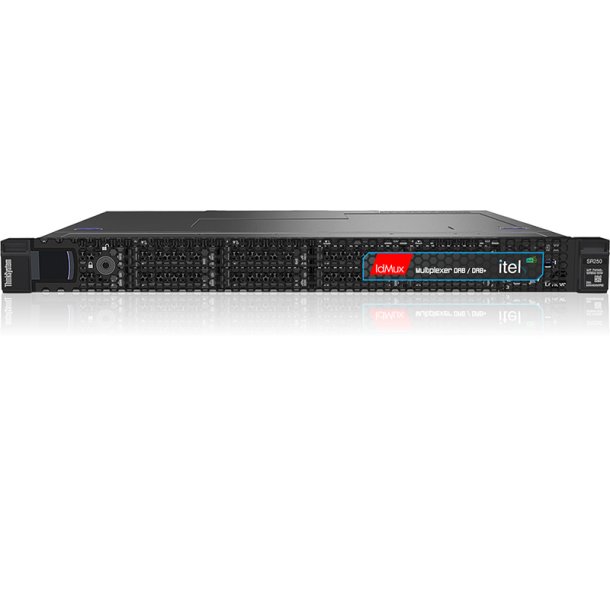

The ITEL system is made by a multiplexer with EDI and ETI output with Time stamp for SFN networks ready to be connected to the transmitter. In the same unit are also present the encoders DAB and DAB+ that can receive the audio and metadata from streaming dedicated from the radio stations. The encoders are also able to send in PAD data the SLS and slide show, that is additional images could be transmitted together with audio.
The platform of encoding and multiplexing is handled by a simple and intuitive web interface from which you can control all the parameters.
The same headend controls the various processes restarting in case of fault and sending alarm emails.
In the encoder is available as option a 6 band audio processor with loudness controll ITU1770.
Technical Details:
Input audio from streaming and IdEnc with audio changeover possibility.
Output EDI unicast e multicast over IP network or ETI (optional) on E1/T1 interface
SFN ready
DAB and DAB+ coding
Samplerate: DAB 24, 48KHz DAB+ 32 , 48 KHz
Datarate: 8 - 192 Kbit
Server in one unit with SSD disk
Double ethernet interface, one for input audio streaming data and one for output EDI stream
Email sender for alarms
Backup and restore of configuration
Firmware update from GUI
Dual redundant power supply (optional)
| Title | Type | Size | Download |
|---|---|---|---|
| Itel-Brochure_IdMux_eng.pdf | 2.68MB | Download |
IT-PF_IDENC_V2
Shipping within 7-14 working days
Call for price
