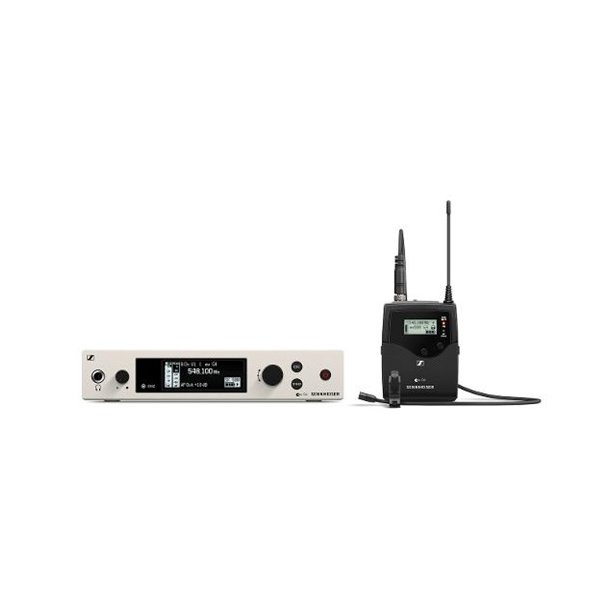

- True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
| Dimensions | Approx. 202 x 212 x 43 mm Approx. 82 x 64 x 24 mm |
| Connector | 3.5 mm jack |
| Compander | Sennheiser HDX |
| Frequency response | 20 to 20.000 Hz ± 3 dB |
| Max. sound pressure level | 142 dB |
| THD, total harmonic distortion | ≤ 0.9 % |
| Cable length | approx. 1.60 m |
| Transducer principle | pre-polarized condensor microphone |
| Weight | Approx. 980 g (incl. batteries) approx. 160 g |
| Audio output | 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu |
| Pick-up pattern | omni-directional |
| Sensitivity in free field, no load (1kHz) | 5 mV/Pa, ± 3 dB |
| Signal-to-noise ratio | ≥ 115 dBA |
| Equivalent noise level | 26 dB |
| Equivalent noise level weighted as per CCIR 468-3 | 39 dB |
| RF output power | switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW |
| Switching bandwidth | up to 88 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 12 V DC 2 AA batteries, 1.5 V or BA 2015 accupack |
| Antenna connector | 2 BNC sockets |
| Current consumption | 350 mA at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA |
| Adjacent channel rejection | Typically ≥ 75 dB |
| Input impedance | 40 kΩ, unbalanced / 1 MΩ |
| Intermodulation attenuation | Typically ≥ 70 dB |
| Max. Input voltage | 3 Veff |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Receiving frequency | Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels |
| RF sensitivity | < 2.5 μV for 52 dBA eff S/N |
