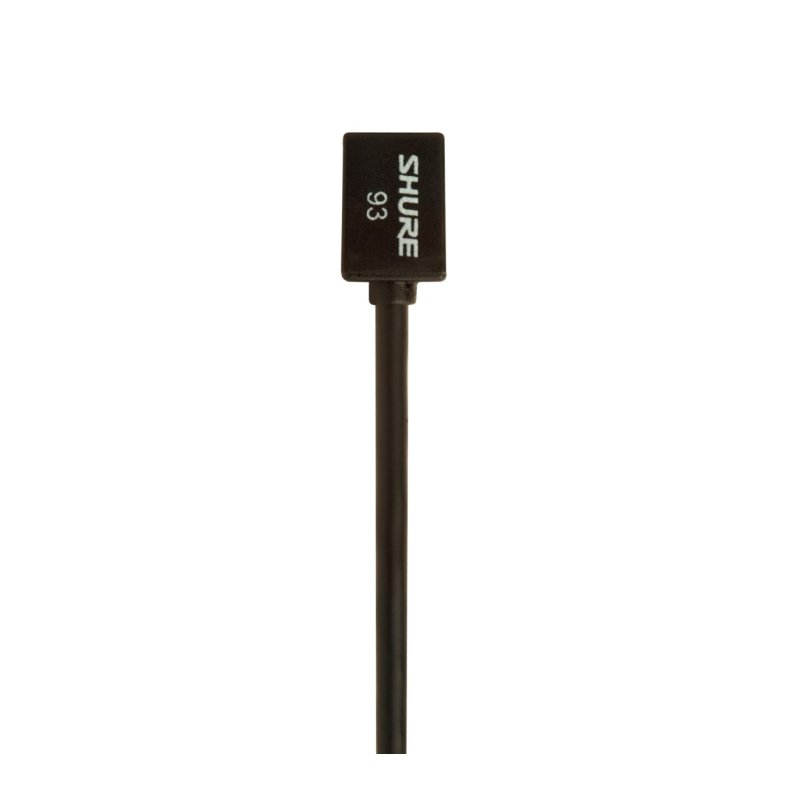

Shure WL93

Omnidirectional Condenser Lavalier Microphone

Shure WL93 Microphone is an omnidirectional, subminiature, lavalier electret condenser microphones. Its visually unobtrusive design and tailored frequency response makes it ideal for body-worn applications in TV broadcasting, theater, and sound reinforcement. The WL93 features a small microphone element that provides full, clear sound comparable to that of much larger microphones.

The WL93, intended for wireless use, connects directly to a Shure wireless body-pack transmitter.

FEATURES

• Subminiature lavalier design; ideal size for theater, television broadcasting, video, film, and sound reinforcement
• Small, inconspicuous mounting hardware
• Full, clear sound comparable to larger microphones
• Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
• Controlled low-frequency rolloff reduces low-frequency clothing and room noise
• Low distortion, wide dynamic range
• Uniform omnidirectional polar pattern
• Preamplifier assembly (SM93) can be pocketed, strapped to the body, or clipped to belt or waistband
• Wide-range phantom powering (SM93) accepts all commonly used voltages

Connect the male, four-pin miniature connector (TA4M) at the end of the 93 microphone cable to the wireless body-pack (WL93).

CONNECTIONS

NOTE: Do not connect the 93 microphone directly to a mixer without using the supplied body-pack.

MOUNTING THE MICROPHONE

The tie clips and mounting bracket provided with the WL93 allow the user to wear the microphone in a variety of ways. To achieve optimum pickup, attach the microphone to the user's chest. You can also obtain high-quality sound when the microphone is worn in the hair, sewn into clothing, or attached to an acoustic instrument such as a guitar.

• Tie Clip. A spring-loaded clasp attaches easily to a necktie, lapel, blouse, or shirt. Snap the microphone into the clip's mounting bracket and attach the clip to an article of clothing.
• Sew-On Bracket. Sew the supplied sew-on mounting bracket directly to a garment (Figure 1). Use dark or light thread as necessary to match the color of the bracket.

SEW-ON MOUNTING

WINDSCREENS

An acoustic foam windscreen is supplied to help reduce undesirable wind noise associated with outdoor miking.

USING OTHER BODY-PACKS

If connecting the 93 microphone to anything OTHER than a Shure wireless body-pack, make sure it provides a regulated +5 Vdc source (40 µA minimum) at pin 2 of the microphone connector, as shown in "MICROPHONE WIRING DIAGRAM" Figure.

MICROPHONE WIRING DIAGRAM

Specifications

WL93 Specifications

Type

Condenser (electret bias)

Frequency Response

50 to 20,000 Hz

Polar Pattern

Omnidirectional, uniform with frequency

Output Impedance

3000 Ω

Output Level[1]

open circuit voltage: −38 dBV/Pa(13  mV)

Output Clipping Level

at 1 kHz: 0.25 V at 120 dB

Total Harmonic Distortion

Less than 1% at 120  dB

Maximum SPL

120 dB

Dynamic Range (Maximum SPL, A-weighted)

102 dB

Output Noise (equivalent SPL)

18 dB typical, A-Weighted

Hum Pickup

N/A

Signal-to-Noise Ratio

76 dB at 94 dB SPL (IEC 651)

Polarity

Positive pressure on microphone diaphragm produces positive voltage on pins 3 and 4 with respect to pin 1 (ground)*

Recommended Operating Voltage

2 to 10 V; 5 V nominal (pin 2 to pins 3 and 4)

Current Drain

40 µA typical

Environmental Conditions

Operating temperature: -18 to 57°C (0 to 135°F)

Storage temperature: -29 to 74°C (-20 to 165°F)

Cable

Black1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature Connector Type TA4F (: Tan 1.27 m[4.17 ft])

Case

Microphone: Black ABS thermoplastic case with stainless-steel-mesh grille

Net Weight

Microphone: 16 g (0.57 oz.)

*Produces positive voltage at pin 2 of Shure L4/EC4 wireless receiver three-pin connector.

Furnished Accessories

****

*Replacements furnished in multiples of 4.

**RK304 includes 2 tie clips and 2 windscreens.

Optional Accessories

Certifications

Eligible to bear CE Marking. Conforms to European EMC Directive 89/336/EEC. Meets applicable tests and performance criteria in European Standard EN55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2) environments.

The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance

Authorized European representative:

Shure Europe GmbH

Headquarters Europe, Middle East & Africa

Department: EMEA Approval

Jakob-Dieffenbacher-Str. 12

75031 Eppingen, Germany

Phone: +49-7262-92 49 0

Fax: +49-7262-92 49 11 4

Email: info@shure.de

TEST CIRCUIT

TYPICAL FREQUENCY RESPONSE

OVERALL DIMENSIONS
